Drywall Screw Anchor
Drywall Screw Anchor
Couldn't load pickup availability

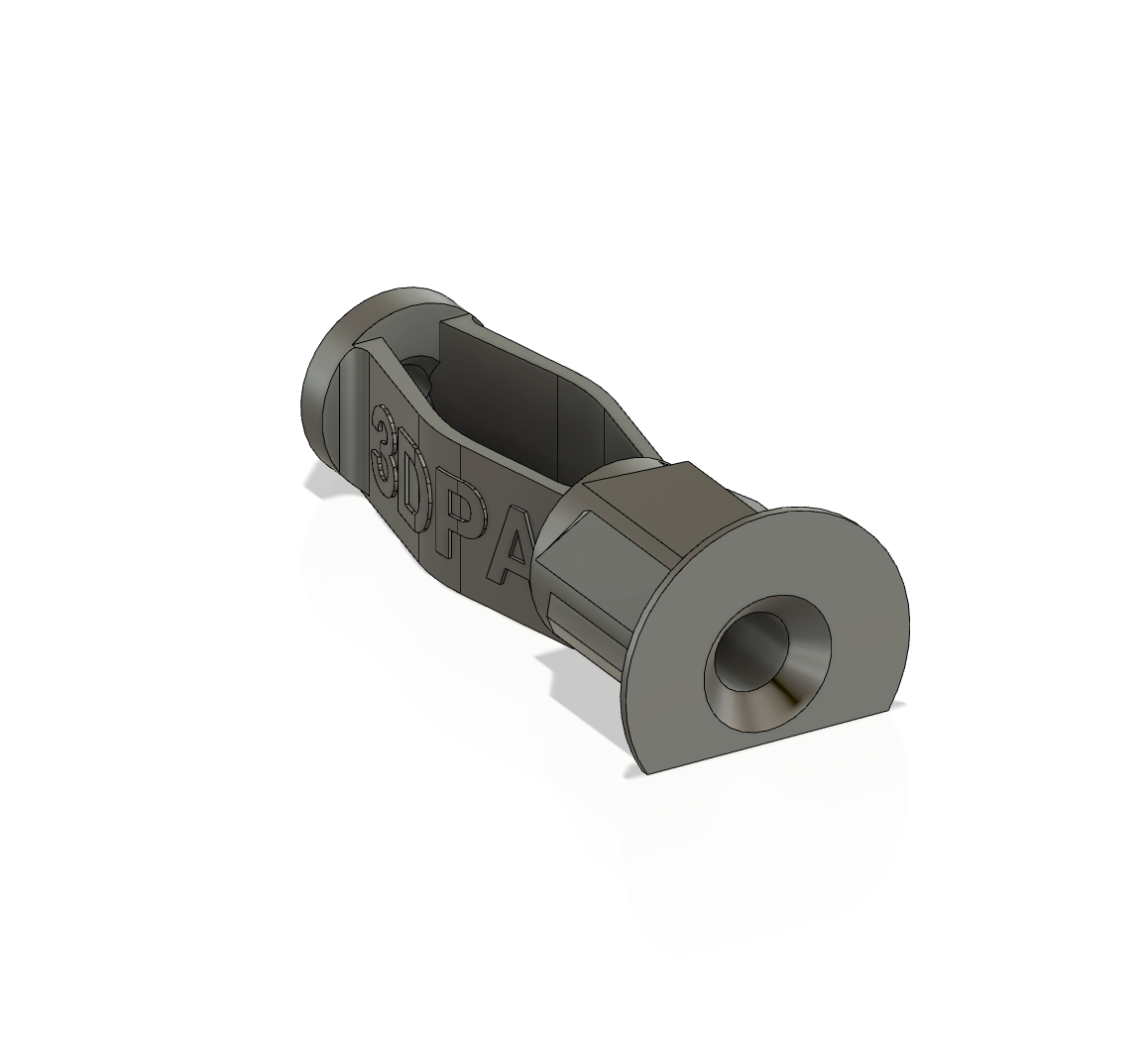

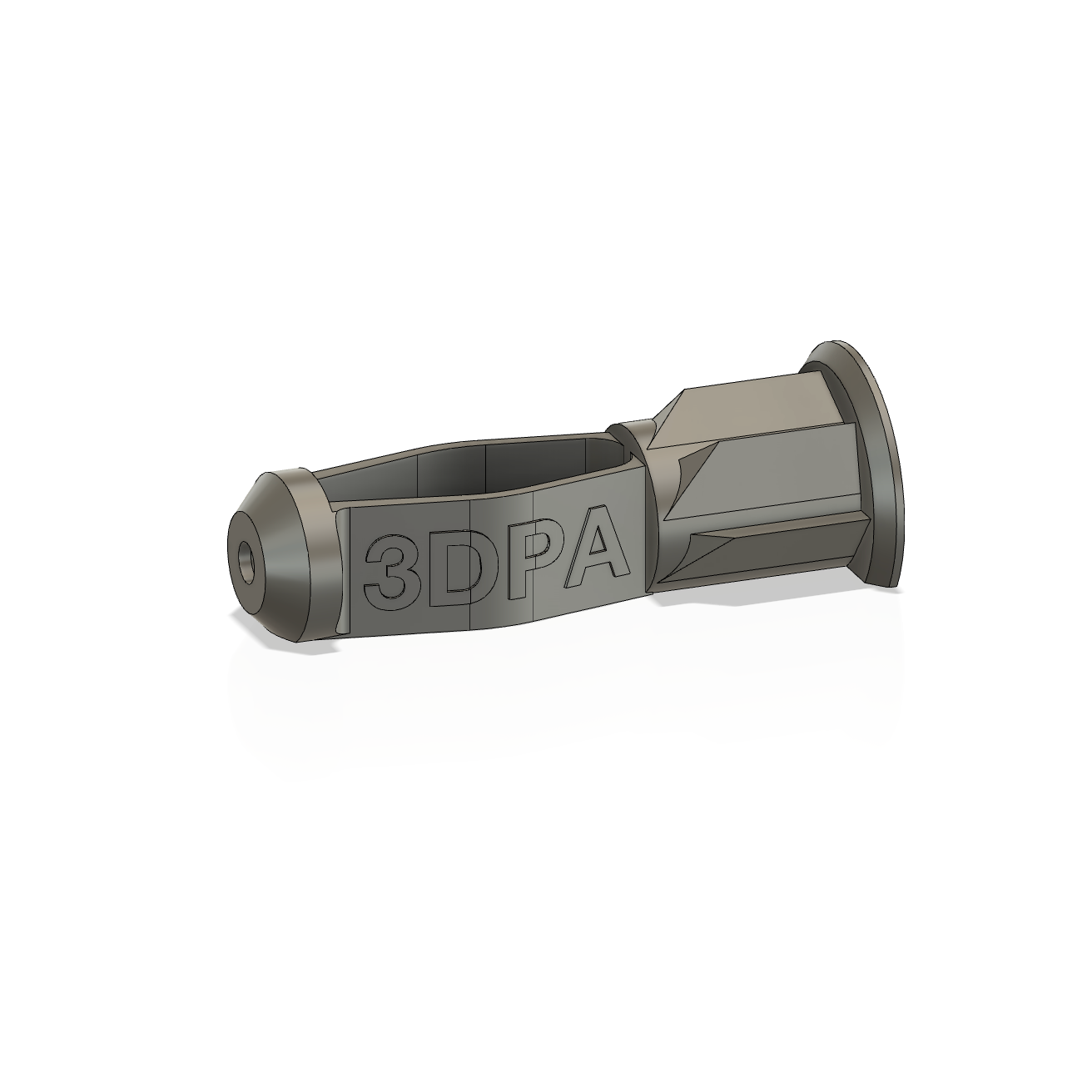

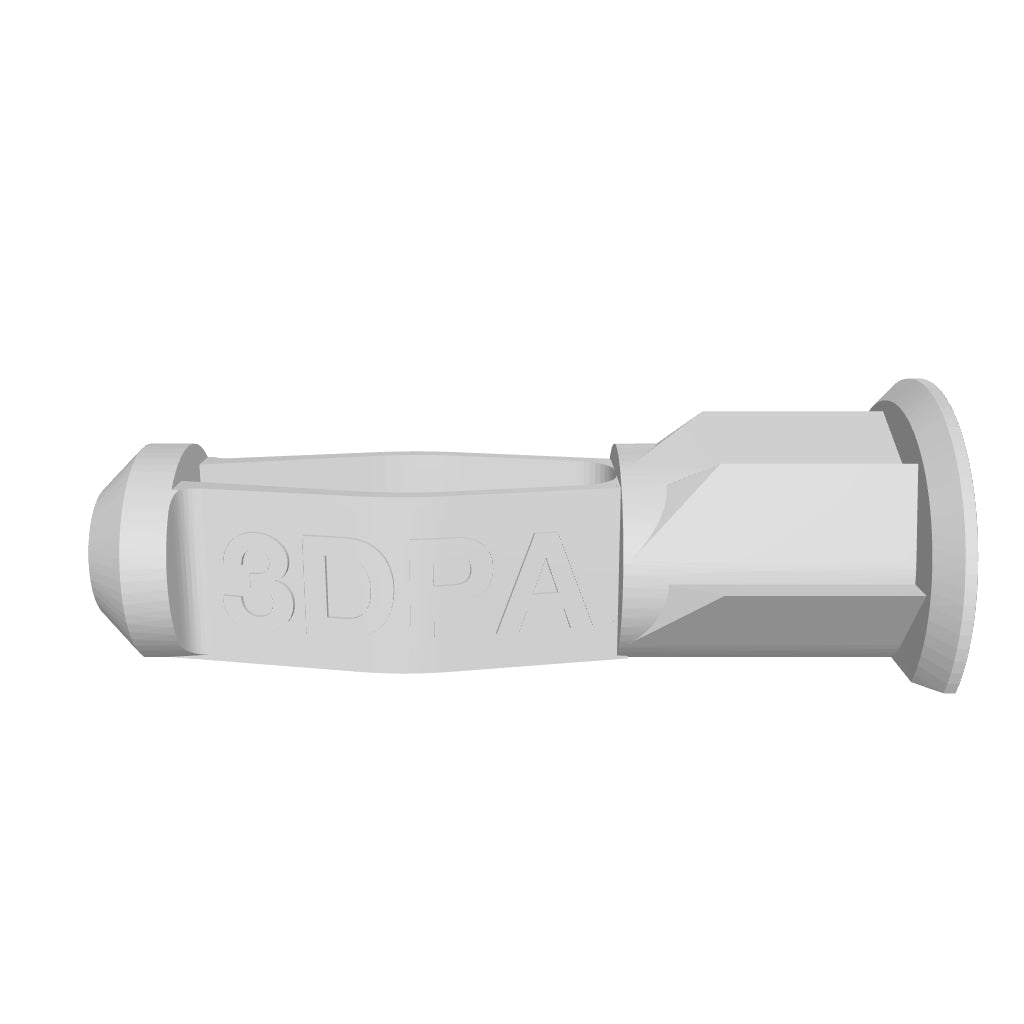

3D print your own drywall anchors for less than 5 cents each! Designed to work best with #6 x 2" (5.08cm) drywall screws.
Print with 100% infill.

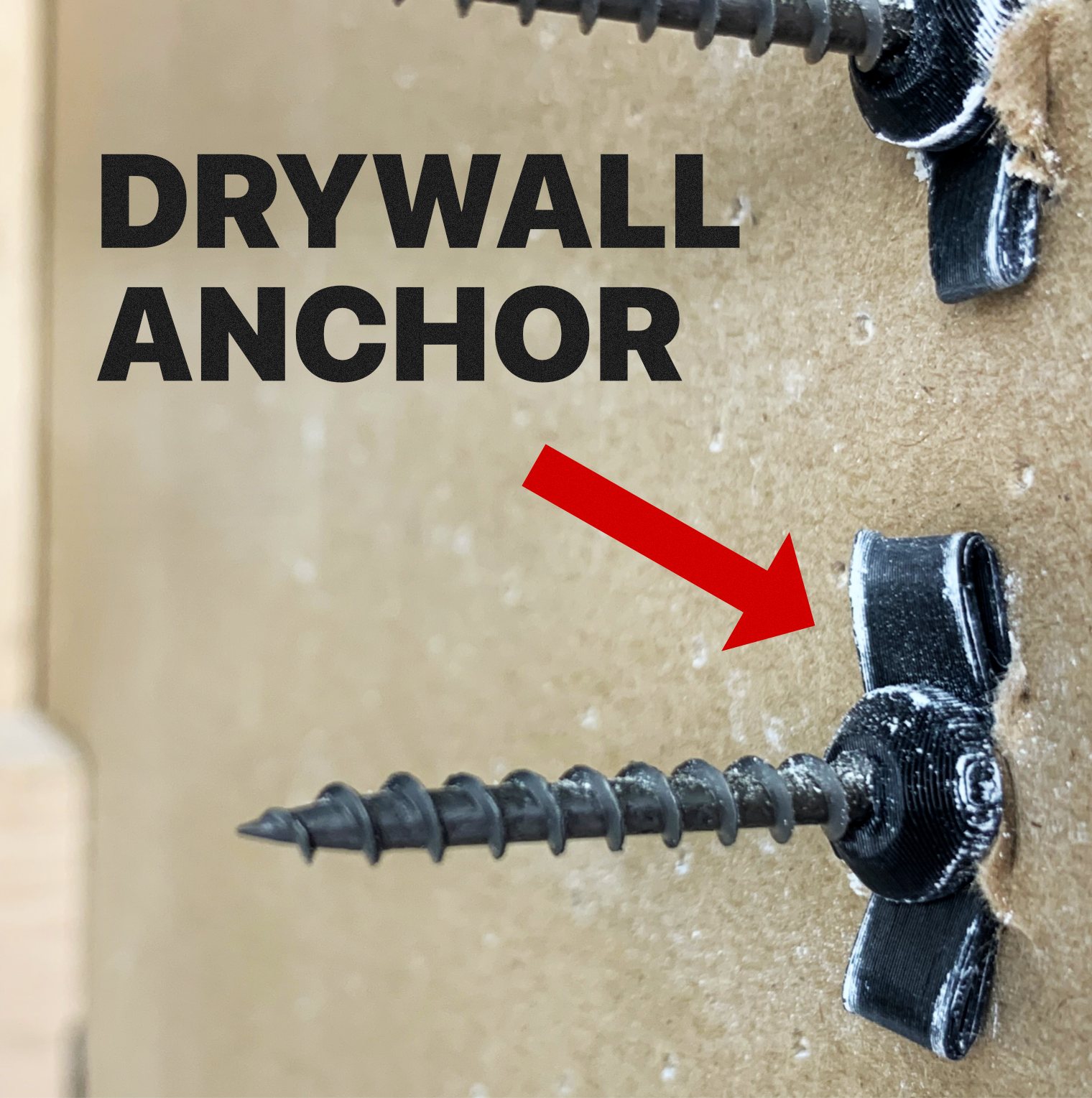

How to use:
1. Pre-drill a 10mm (25/64" preferred or 3/8" will work) hole in drywall.
2. Press fit anchor into wall until flush
3. Use #6 coarse threaded drywall screws (2" length) https://amzn.to/3Udc7MQ
Specifications:
3DPA rated up to 12.5kg or 27lbs
(Ultimate Strength Safety Factor = 4.0)
(Yield Strength Safety Factor = 2.4)
See it in action:
Strength test:
*use at your own risk.*
Share




It should be OBVIOUS NOT to print with PLA. PLA is not pliable, bendable, flexible. PLA is BRITTLE. Use ABS, Nylon, apparently PETG as another person tested.
Hi there,

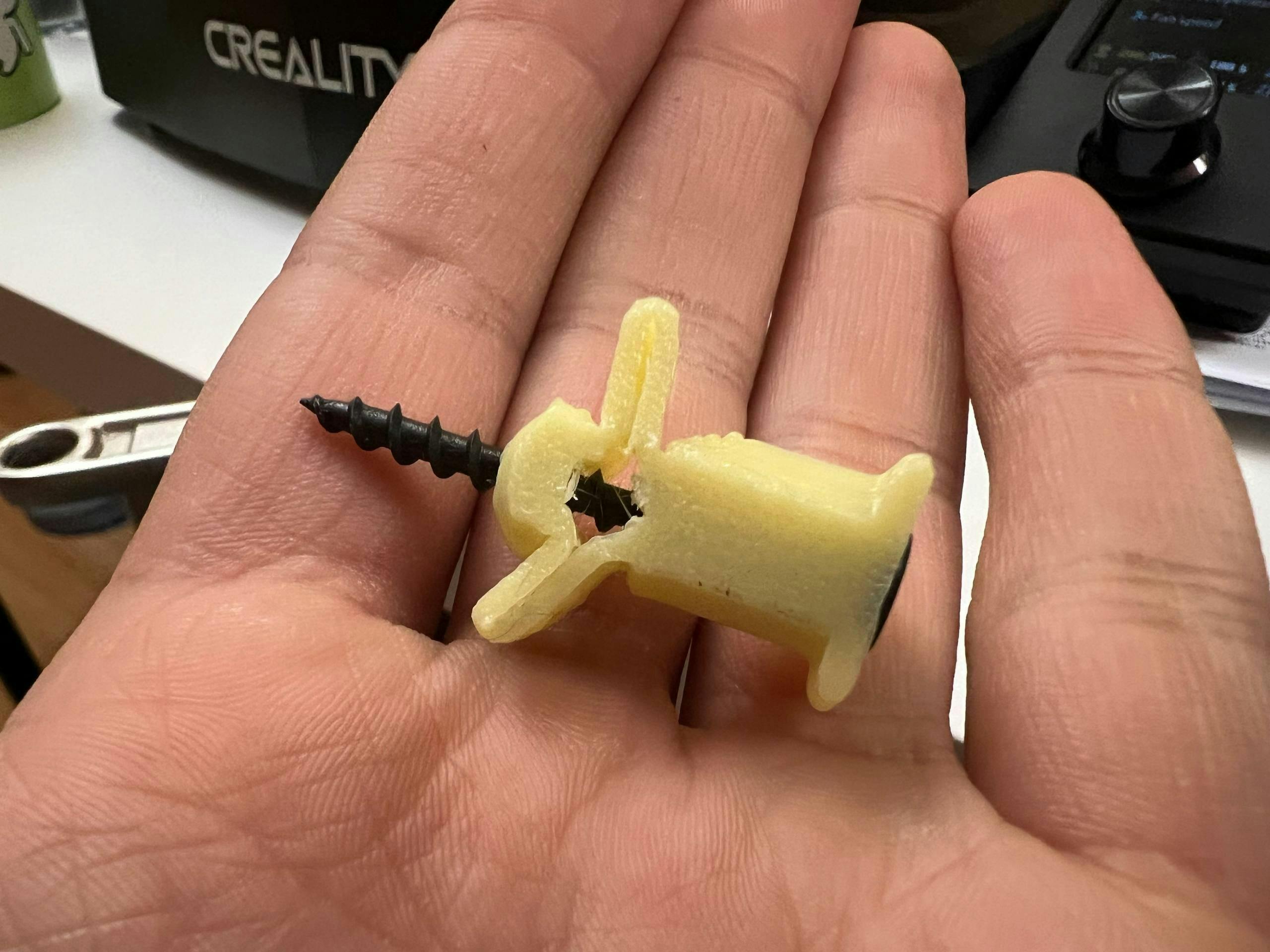

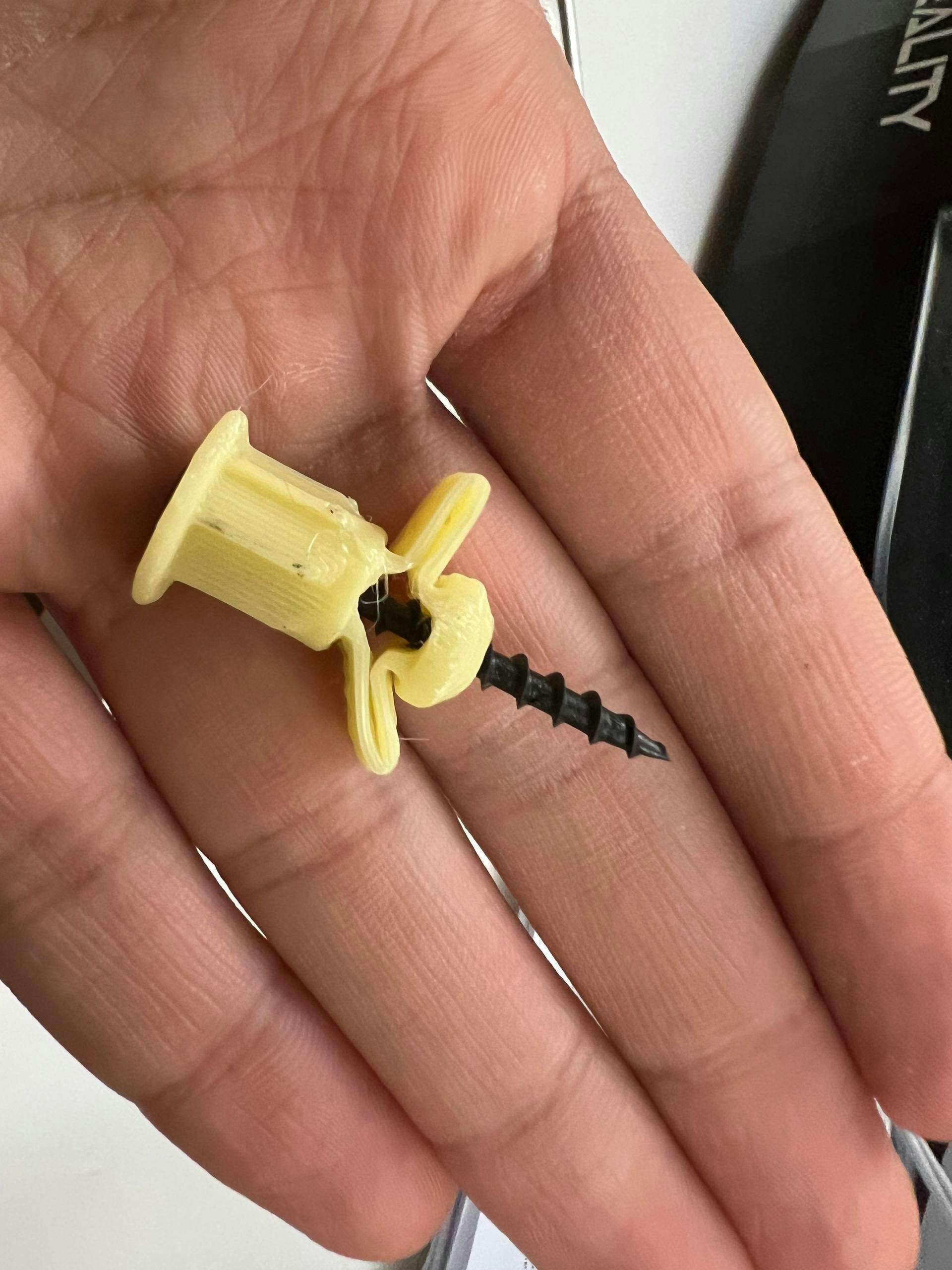

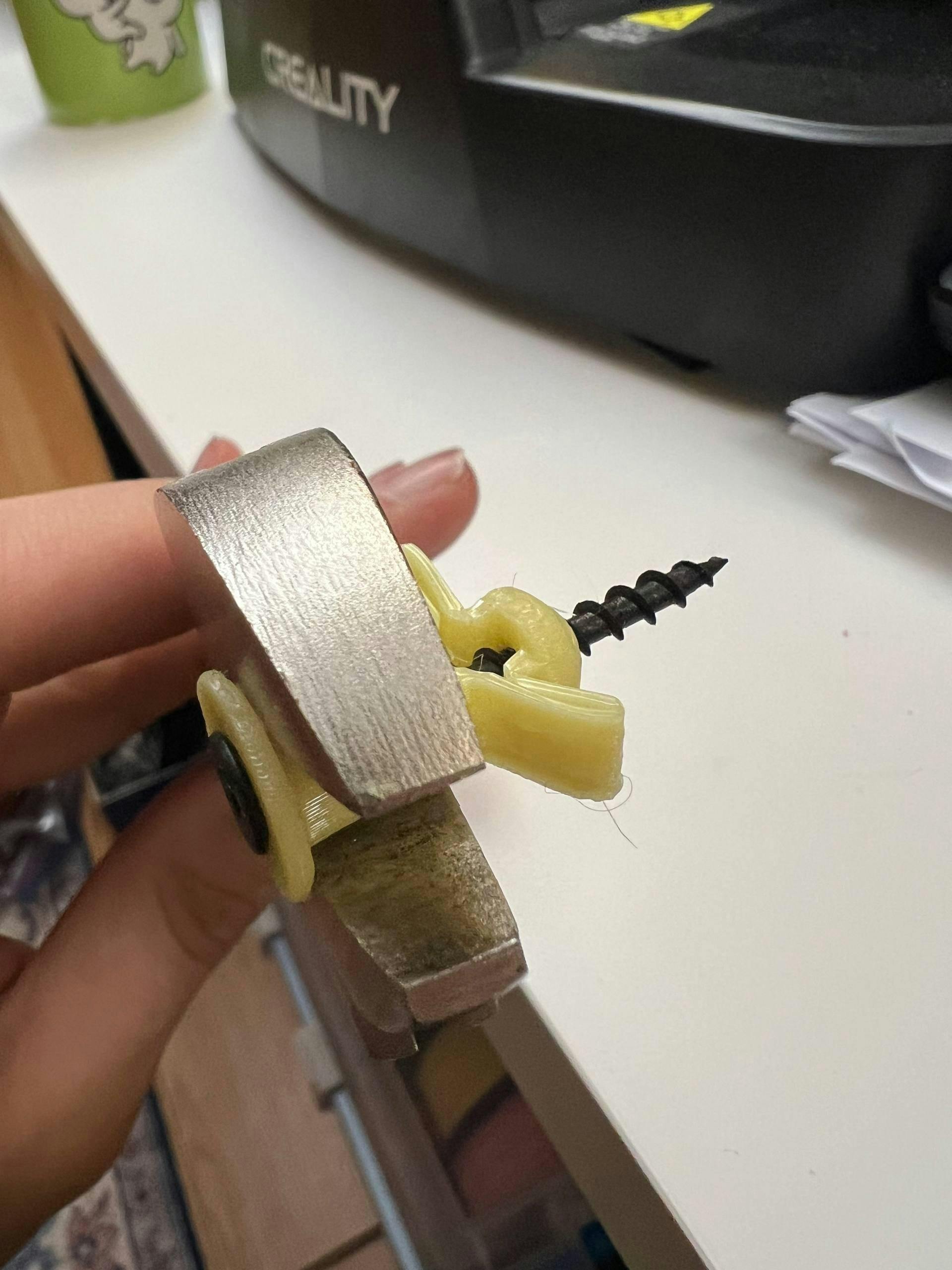

I printed these with PETG, and they came out amazing. I tested one and put the pics fyi.
The only downside is that you have to have a 10mm bit (25/64" or 3/8"). As I didn't have one, I ended up using a 5/16 and just moved it a bit to make the hole bigger, and it worked great.
Printed with PLA. The tip of the anchor immediately broke apart from the screws rotating motion. The model isn't published anywhere public so I can't see if others have the same issue.
